Description

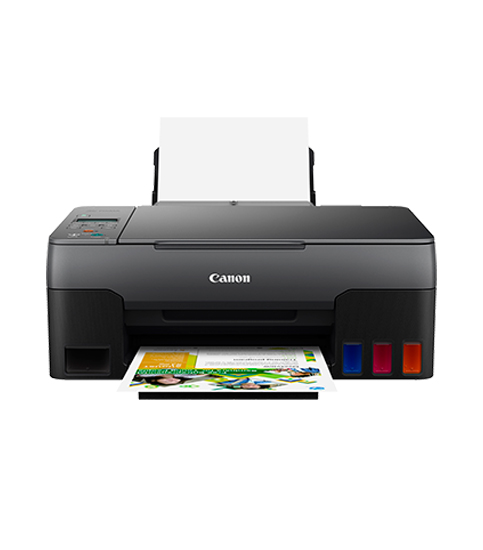

Easy Refillable Ink Tank, Wireless, All-In-One Printer for High Volume Printing
Designed for high volume printing, this affordable wireless 3-in-1 printer combines low-cost printing with easy wireless setup and convenient maintenance
- Print, Scan, Copy
- ISO standard print speed (A4): up to 9.1 ipm black / 5.0 ipm colour
- Wireless, Wireless PictBridge, Mopria, AirPrint, Direct Wireless
- Recommended print volume: 150 to 1,500 pages
SPECIFICATIONS:
| Number of Nozzles | Total 1,792 nozzles |
| Ink Bottles | GI-71 (Pigment Black / Cyan / Magenta / Yellow) |
| Ink Cartridges | MC-G02 (Maintenance cartridge) |
| Maximum Printing Resolution | 4,800 (horizontal)*1 x 1,200 (vertical) dpi |
| Print Speed*2 | Based on ISO/IEC 24734 |
| Document (ESAT/Simplex) | Approx. 9.1 ipm (black) / 5.0 ipm (colour) |
| Document (FPOT Ready / Simplex) | Approx. 9.0 sec (black) / 16 sec (colour) |
| Photo (4 x 6″) (PP-201/Borderless) | Approx. 45 sec |
| Printable Width | Up to 203.2 mm (8″) Borderless: Up to 216 mm (8.5″) |
| Printable Area | |
| Borderless Printing*3 | Top/Bottom/Left/Right margin: each 0 mm |
| Bordered Printing | Envelope (COM10/DL):
Top margin: 8 mm, Bottom margin: 12.7 mm, Left/Right margin: 3.4 mm Envelopes (C5/Monarch): Top margin: 8 mm, Bottom margin: 12.7 mm, Left/Right margin: 5.6 mm Square 5 x 5″ (127 x 127 mm): Top/Bottom/Left/Right margin: 6 mm Square 3.5 x 3.5″ (89 x 89 mm): Top/Bottom/Left/Right margin: 5 mm LTR/LGL/Foolscap/B-Oficio: Top margin: 3 mm, Bottom margin: 5mm, Left margin: 6.4 mm, Right margin 6.3 mm M-Oficio: Top margin: 3 mm, Bottom margin: 5 mm, Left/Right margin: 6.4 mm Others: Top margin: 3 mm, Bottom margin: 5 mm, Left/Right margin: 3.4 mm |
| Support Media | |
| Rear Tray | Plain Paper (64-105 g/m²)
Photo Paper Pro Luster (LU-101) Photo Paper Plus Glossy II (PP-201/PP-208) Matte Photo Paper (MP-101) Double Sided Matte Paper (MP-101D) Glossy Photo Paper “Everyday Use” (GP-508) High Resolution Paper (HR-101N) Photo Paper Plus Semi-Gloss (SG-201) Photo Stickers (PS-108/PS-208/PS-808) Removable Photo Stickers (PS-308R) Magnetic Photo Paper (PS-508) Dark Fabric Iron On Transfers (DF-101) Light Fabric Iron On Transfers (LF-101) Envelope |
| Paper Size | |
| Rear Tray | A4, A5, A6, B5, LTR, LGL, Executive (184.2 x 266.7 mm), Legal (India) (215 x 345 mm), Foolscap (215.9 x 330.2 mm), F4 (215.9 x 330.2 mm), Oficio2 (215.9 x 330.2 mm), B-Oficio (216 x 355 mm), M-Oficio (216 x 341 mm), 4 x 6″, 5 x 7″, 7 x 10″, 8 x 10″, Envelopes DL, Envelopes COM10, Envelopes C5, Envelopes Monarch (98.4 x 190.5 mm), Square (3.5 x 3.5”, 5 x 5”), Card Size (91 x 55 mm)
Custom size: width 55 – 216 mm, length 89 – 1200 mm |
| Paper Size (Borderless)*4 | A4, LTR, 4×6″, 5×7″, 7×10″, 8×10″ Square (3.5 x 3.5″, 5 x 5″), Card Size (91 x 55 mm) |
| Paper Handling (Maximum Number) | |
| Rear Tray | Plain Paper (A4, 64 g/m²) = 100
High Resolution Paper (HR-101N) = 80 Photo Paper Plus Glossy II (PP-201, 4 x 6″) = 20 Photo Paper Plus Semi-Gloss (SG-201, 4 x 6″) = 20 Glossy Photo Paper “Everyday Use” (GP-508, 4 x 6″)=20 Matte Photo Paper (MP-101, 4 x 6″) = 20 |
| Paper Weight | |
| Rear Tray | Plain Paper: 64-105 g/m²
Canon paper: Max paper weight: approx. 275 g/m² (Photo Paper Plus Glossy II, PP-201) |
| Ink End Sensor | Dot count type |
| Print Head Alignment | Manual |
| Scan | |
| Scanner Type | Flatbed |
| Scanner Method | CIS (Contact Image Sensor) |
| Optical Resolution*6 | 600 x 1,200 dpi |
| Scanning Bit Depth (Input/Output) | |
| Grayscale | 16 bit/8 bit |
| Colour | RGB each 16 bit/8 bit |
| Line Scanning Speed*7 | |
| Grayscale | 1.5 ms/line (300 dpi) |
| Colour | 3.5 ms/line (300 dpi) |
| Maximum Document Size | |
| Flatbed | A4/LTR |
| Copy | |
| Maximum Document Size | A4/LTR |
| Compatible Media | |
| Size | A4, A5, A6, B5, LTR, LGL, Executive (184.2 x 266.7 mm), Legal (215 x 345 mm), Foolscap (215.9 x 330.2 mm), B-Oficio (216 x 355 mm),
M-Oficio (216 x 341 mm), 4 x 6″, 5 x 7″, Square (5 x 5″), Card Size (91 x 55 mm) |
| Type | Plain Paper
Photo Paper Plus Glossy II (PP-201, PP-208) Photo Paper Pro Luster (LU-101) Photo Paper Plus Semi-Gloss (SG-201) Matte Photo Paper(MP-101) Glossy Photo Paper(GP-508) |
| Image Quality | 3 positions (Economy, Standard, High) |
| Density Adjustment | 9 positions, Auto intensity (AE copy) |
| Copy Speed | Based on ISO/IEC 24734 |
| Document (Colour): (sFCOT/Simplex) / (sESAT/Simplex) | Approx. 28 sec / 2.6 ipm |
| Multiple Copy | |
| Black & White/Colour | Max. 99 pages |
| Network | |
| Protocol | SNMP, HTTP, TCP/IP (IPv4/IPv6) |
| Wireless LAN | |
| Network Type | IEEE802.11b/g/n |
| 2.4GHz Channel (1 – 11) | US/HK/TW/LTN/BR/CAN |
| 2.4GHz Channel (1 – 13) | JP/KR/EUR/AU/ASA/CN/EMBU |
| Security | WEP 64/128 bit
WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES) |
| Direct Connection (Wireless LAN) | Available |
| Printing Solutions | |
| AirPrint | Available |
| Mopria | Available |
| Canon Print Service (for Android) | Available |
| PIXMA Cloud Link From smartphone or tablet | Available |
| Easy Photo-Print Editor
(for iOS/Android) |
Available |
| Canon PRINT Inkjet/SELPHY
(for iOS/Android) |
Available |
| Camera Direct | Wireless LAN |
| System Requirements | Windows 10 / 8.1 / 7 SP1
(operation can only be guaranteed on a PC with a pre-installed Windows 7 or later) macOS 10.12.6 ~ 10.15 Chrome OS |
| General Specifications | |
| Operation Panel | |
| Display | 2-Line LCD |
| Language | 32 Selectable Languages: Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese |
| Interface | USB 2.0 |
| PictBridge (Wireless) | Available |
| Operating Environment | |
| Temperature | 5 – 35°C |
| Humidity | 10 – 90% RH (no dew condensation) |
| Acoustic Noise (PC Print) | |
| Plain Paper (A4, B/W) | Approx. 49.5 dB(A) |
| Power | AC 100-240 V, 50/60 Hz |
| Power Consumption | |
| OFF | Approx. 0.2 W |
| Standby (scanning lamp is off)
USB connection to PC |
Approx. 0.6 W |
| Copying USB connection to PC | Approx. 16 W |
| Duty Cycle | Up to 3,000 pages/month |
| Dimension (WxDxH) | |
| Factory Configuration | Approx. 445 x 330 x 167 mm |
| Output/ADF trays extended | Approx. 445 x 555 x 238 mm |
| Weight | Approx. 6.4 kg |
| Page Yield | |
| Plain Paper (A4 pages)
(ISO/IEC 24712 test file) |
Standard:
GI-71 PGBK: 6,000 GI-71 C/M/Y: 7,700 Economy: GI-71 PGBK: 7,600 GI-71 C/M/Y: 7,700 |
| Photo Paper (PP-201, 4 x 6″)
(ISO/IEC 29103 test file) |
Standard:
GI-71 PGBK: NA GI-71 C/M/Y: 2,200 |
